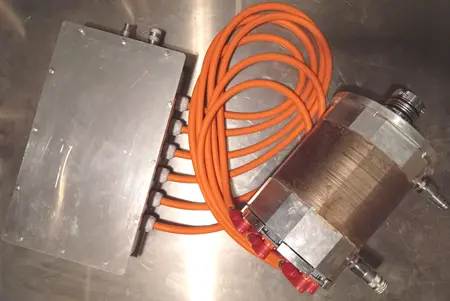

Retorq250 - HS
Retorq250-HS (High Speed) series is the high speed traction motor-generator system with leading in-class torque and power output capability.
The compact Retorq250-HS system design ideally suited for integration with a gearbox due to extended speed constant power feature of the RETORQ radial machine. Retorq250-HS applications include electric vehicles (cars, buses, trucks, construction, off-road, farm), train auxiliary power units, marine propulsion and generation units.
The REluctance TORQue technology based Retorq250-HS is the most cost-effective motor-generator system solution for low, medium and high volume applications.
The hybrid-electric vehicle applications for which Retorq250 - HS systems offer exceptional cost-performance advantage are: buses, trucks, excavators, loaders, tractors.
Retorq250 - HS Performance Summary
Mechanical |
Electrical |
||
|---|---|---|---|
Mass |
75 kg |
Continuous Power |
150 kW |
Volume |
6 Litre |
Continuous Torque |
150 Nm |
Axial Length |
500 mm |
Peak Torque |
250 Nm |
Diameter |
300 mm |
Peak Current |
1000 A DC |
Coolant |
Water-glycol |
System Voltage |
270 V |
Coolant Flow |
10 L/minute |
Max Efficiency |
96% |
Max Speed |
20000 RPM |
Control Interface |
CANbus 2.0 |
*These specifications are subject to ambient conditions and motor duty cycle

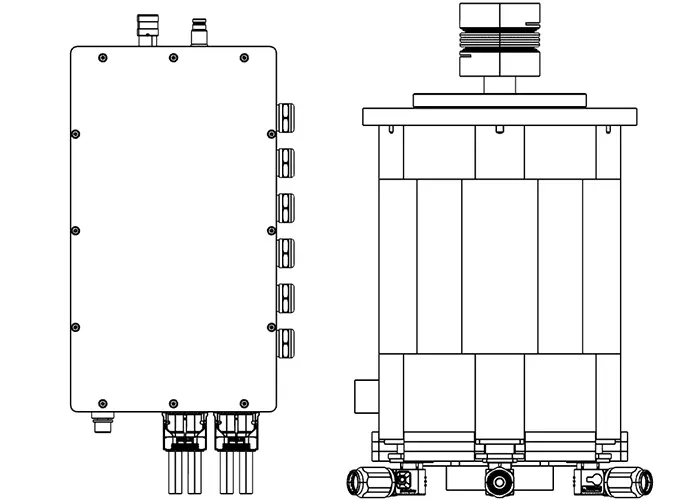

Schematic
